Thanks to our feed mixer machines that we designed as producer-friendly with its light, simple and strong structure, our producers had the opportunity to obtain homogeneous feed. Thanks to all our knowledge and skills in the field of feed mixer machines, we have offered this machine, which we have produced, to the service of our customers. We designed it with high technology for long life.
We made it easy for the operator to use. Thanks to these certified products, our producers have obtained more homogeneous feed mixes. He used these feeds with peace of mind for the animals they fed both for milk and meat.
Since the feed mixed in this feed mixer is not damaged, all useful nutrients have reached the animals fully. We minimized the amount of feed remaining on the machine base after distribution. Thus, we aimed to ensure that our producers reach the animals without changing their rations in the next feed addition process.
The feed mixer is a machine used especially in workplaces dealing with cattle breeding. This machine is very important for the business. Its task is to mix it with silage, concentrated feeds, roughages and dry feeds that are desired to be fed to animals in certain proportions. The feeds created using feed mixer machines are at the request of the animal breeder. It is used to achieve the ideal ratios for meat and dairy farming. At the same time, it has a separate task of breaking up the bale feeds while mixing the feeds.
Body Structure/ Property |
S200 - 2 m³ |
S300 - 3 m³ |
S400 - 4 m³ |

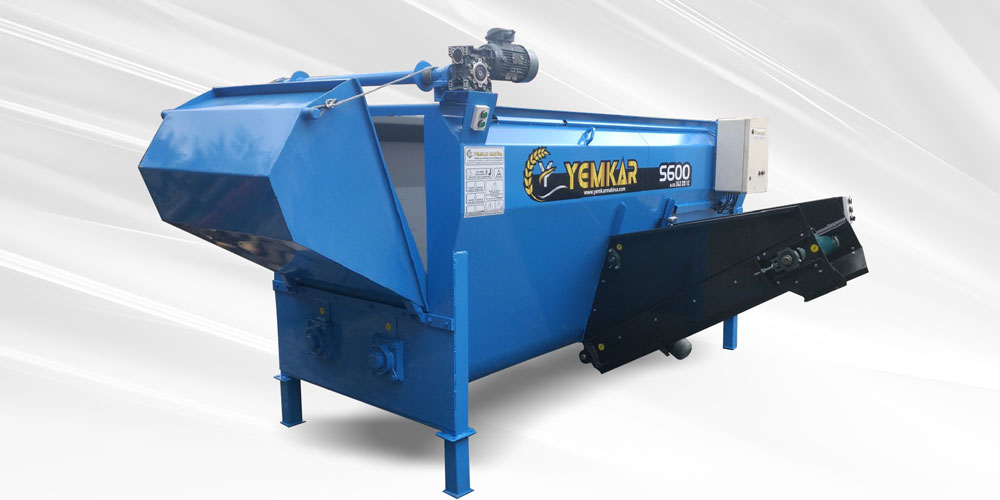

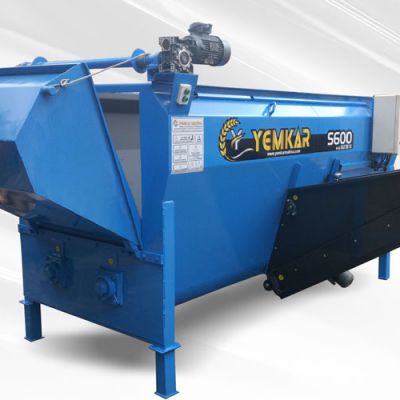

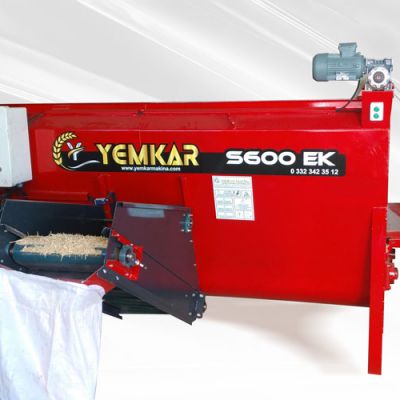

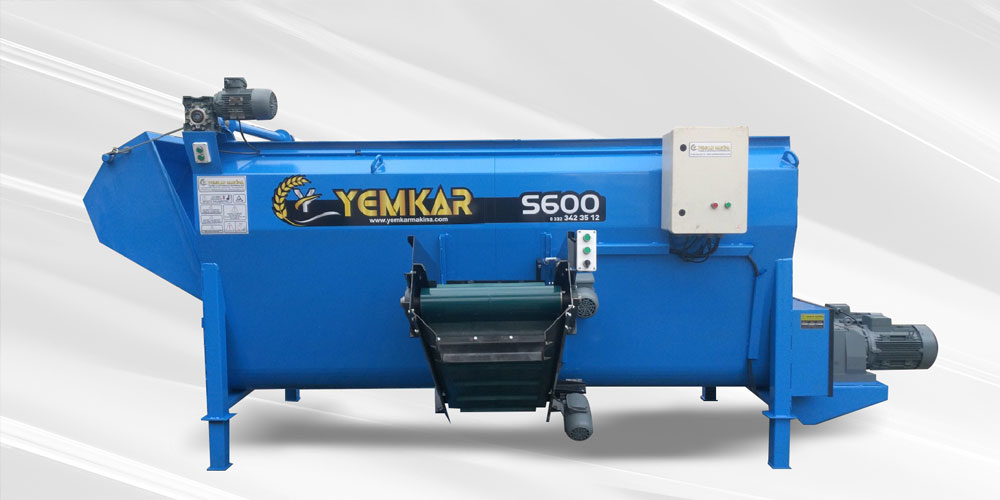

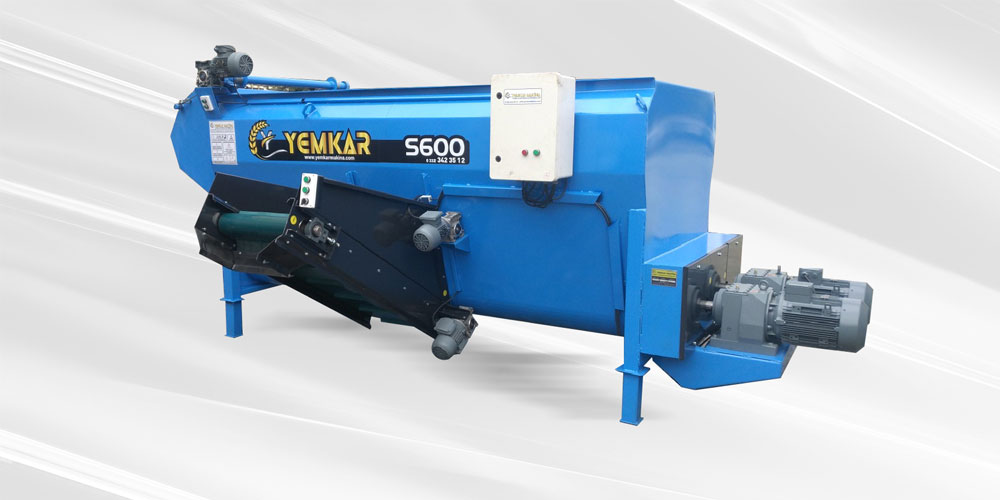

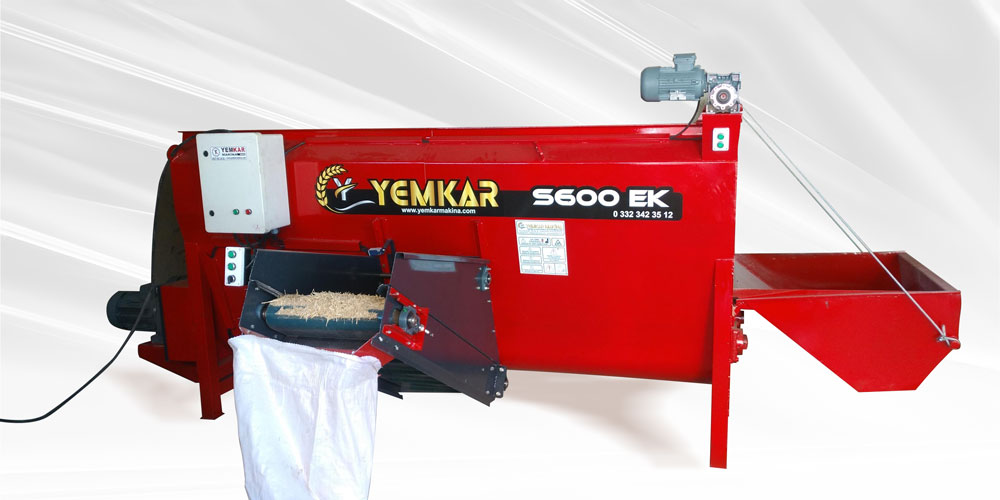

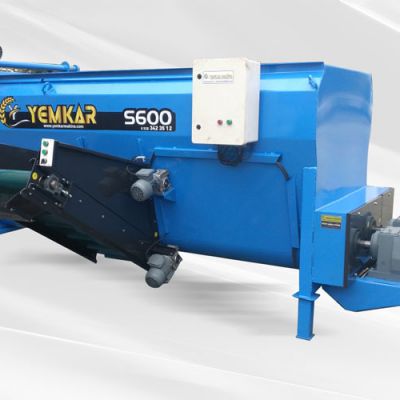

S600 - 6 m³ |

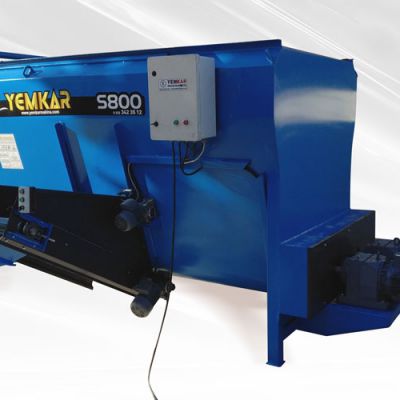

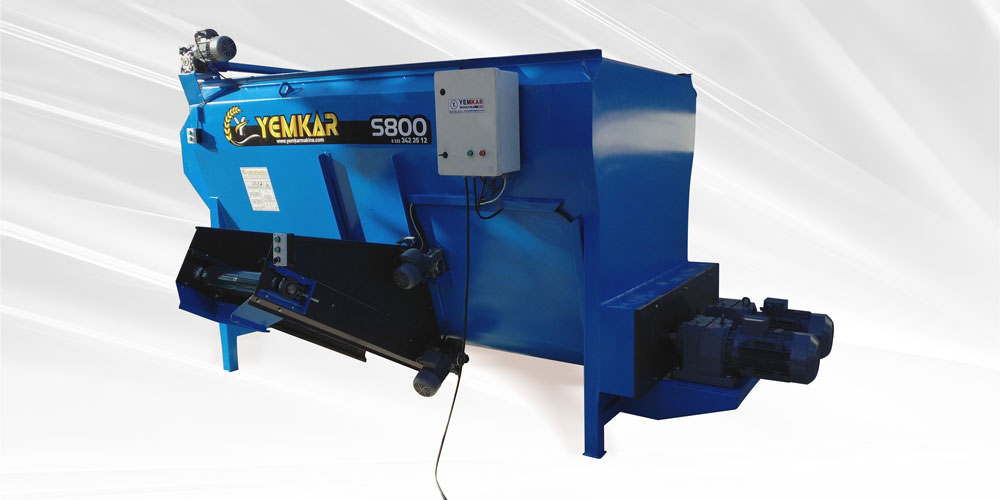

S800 - 8 m³ |

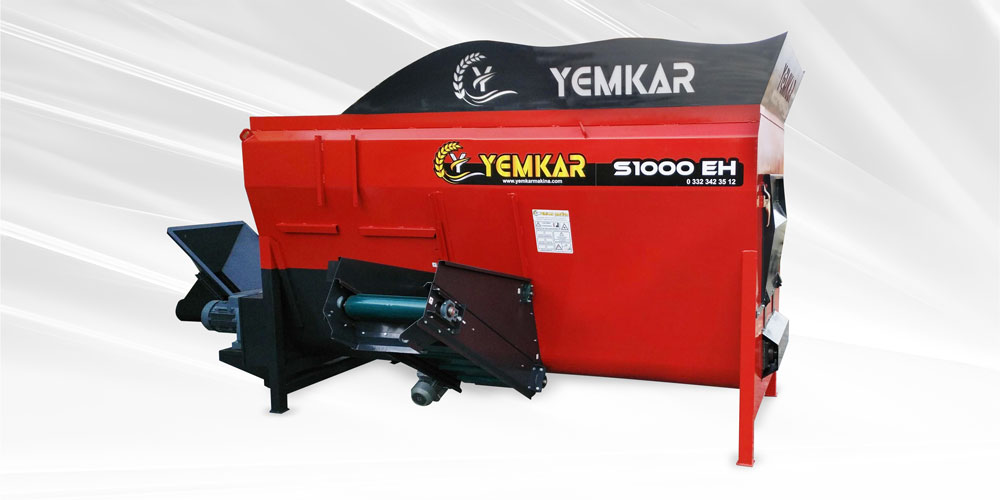

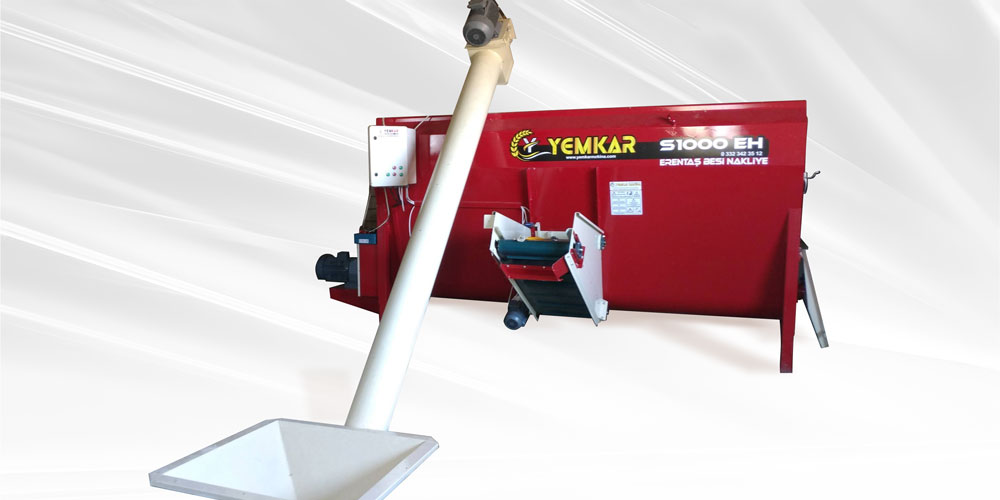

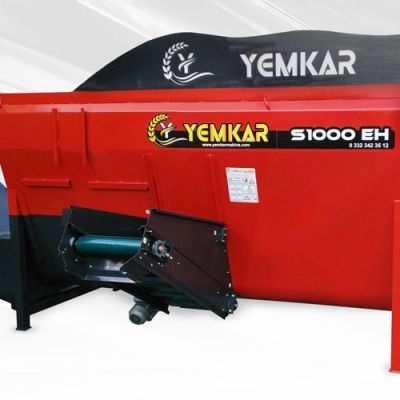

S1000 - 10 m³ |
S1200 - 12 m³ |
---|---|---|---|---|---|---|---|
DIMENSIONS | 1100*1350*3500 mm | 1200*1450*3700 mm | 2250*1850*4000 mm | 2700*1930*4500 mm | 2950*2200*4700 mm | 2950*2200*5200 mm | 3000*2500*5200 mm |

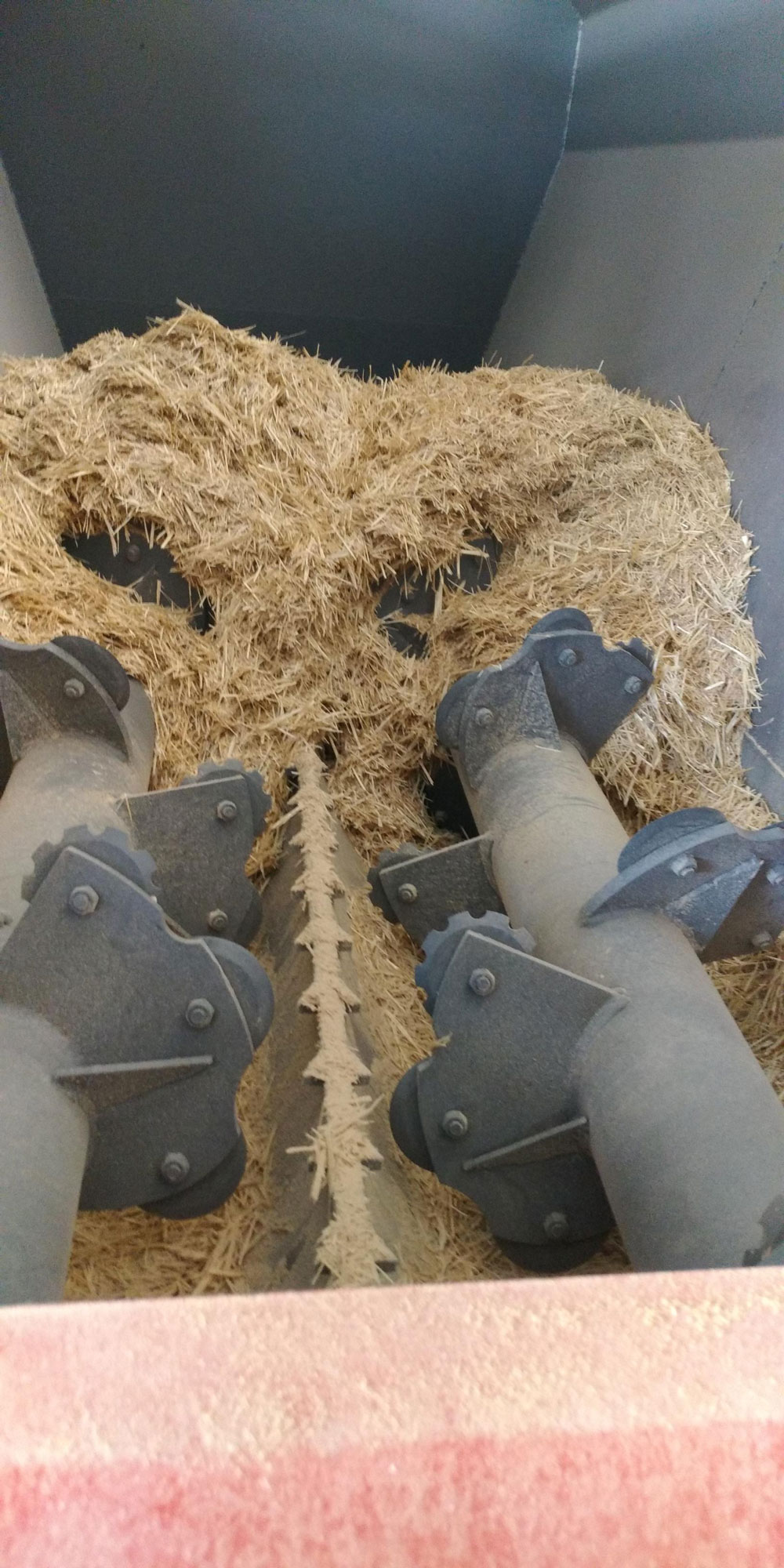

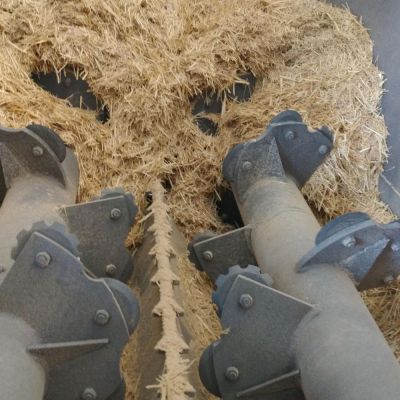

AUGER SYSTEM | Horizontal Double | Horizontal Double | Horizontal Double | Horizontal Double | Horizontal Double | Horizontal Double | Horizontal Double |
MOTION SYSTEM | Reducer | Reducer | Reducer | Reducer | Reducer | Reducer | Reducer |
NUMBER OF MOVEMENT SYSTEMS | Double Reducer | Double Reducer | Double Reducer | Double Reducer | Double Reducer | Double Reducer | Double Reducer |
MOTION SOURCE | Electric motor | Electric motor | Electric motor | Electric motor | Electric motor | Electric motor | Electric motor |
DRIVE POWER (MİN) | 6 HP | 8 HP | 11 HP | 15 HP | 20 HP | 30 HP | 40 HP |
SCALE SYSTEM | Digital (Optional) | Digital (Optional) | Digital (Optional) | Digital (Optional) | Digital (Optional) | Digital (Optional) | Digital (Optional) |

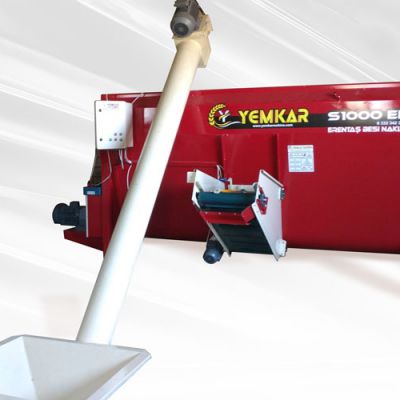

LOADING SYSTEM | Bucket (Optional) | Bucket (Optional) | Bucket | Bucket / Spiral | Bucket / Spiral | Bucket / Spiral | Bucket / Spiral |
UNLOADING SYSTEM | Tape (Optional) | Tape (Optional) | Tape | Tape | Tape | Tape | Tape |
THICKNESS OF AUGER LEAF | 8 mm | 10 mm | 10 mm | 12 mm | 12 mm | 15 mm | 15 mm |
BODY GROUND STRUCTURE | Chrome Plated (Optional) | Chrome Plated (Optional) | Chrome Plated (Optional) | Chrome Plated (Optional) | Chrome Plated (Optional) | Chrome Plated (Optional) | Chrome Plated (Optional) |
NUMBER OF CHIPPER BLADES | 40 | 48 | 84 | 108 | 108 | 144 | 144 |
MIXTURE HOMOGENE TIME (MİN) | %90 - 15 DK | %90 - 15 DK | %90 - 15 DK | %90 - 15 DK | %90 - 15 DK | %90 - 15 DK | %90 - 15 DK |
